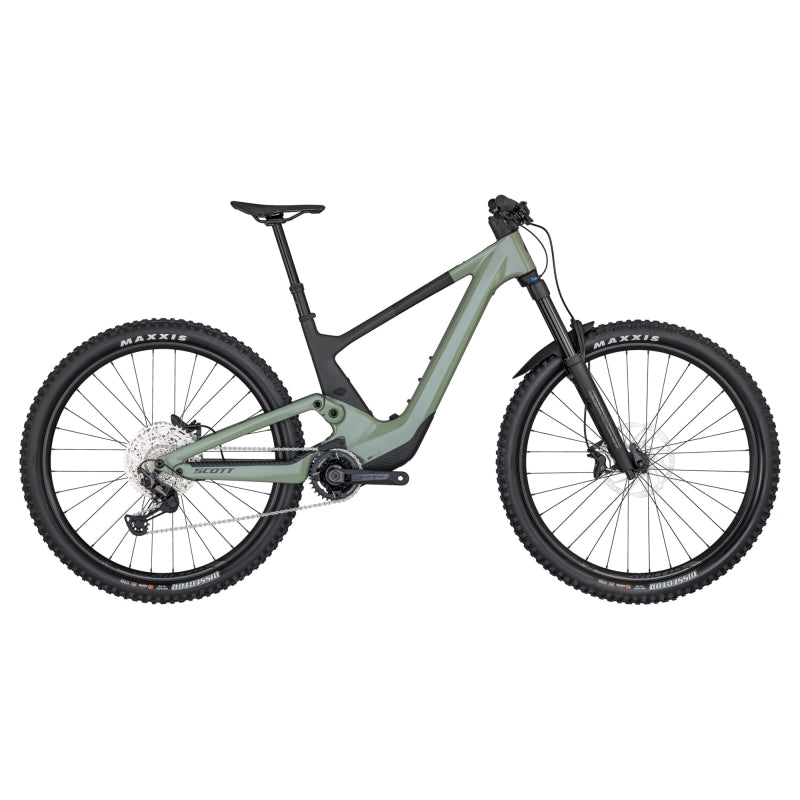

Scott Voltage Eride 910
$13,499.99
Find your local store to view product availability
Details
Specs
Product Code: 293291
Imagine giving the world's best trail bike a secret weapon. With the Voltage eRIDE, that's just what we did. Designed for existing MTB enthusiasts who crave an agile, lightweight and capable trail bike with the addition of a compact and quiet motor, the all-new Voltage eRIDE overdelivers trail after trail... after trail.
Please note that bike specifications are subject to change without prior notice
GRIPS
Syncros Endurance lock-on grips
HANDLEBAR
Syncros Hixon 1.5 Alloy 7050 Size S & M 15mm rise / Size L & XL 25mm rise back sweep 8' / 780mm
HEADSET
Syncros - Acros Angle adjust & Cable Routing HS System Stainless head angle adjustment ZS56/28.6 – ZS56/40 MTB
SADDLE
Syncros Tofino 1.5 Regular Titanium rails
SEATPOST
Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm S size 140mm / M size 180mm / L & XL size 210mm
STEM
Syncros AM 1.5 Syncros Cable Integration System 4" rise / 7050 Alloy / 31.8mm / 1 1/8"
SUSPENSION CONTROLS
SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 Suspension modes
BRAKES
Shimano Deore M6120 4-Piston Disc
BRAKES ROTOR
Shimano SM-RT64 CL / F&R 203mm
CASSETTE
Shimano CS-M6100 / 10-51 T
CHAIN
Shimano CN-M6100
CHAINGUIDE
e*thirteen / e*spec Slider
CHAINRING
Scott custom spider / FSA 12Speed 34T chainring
CRANKSET
FSA Alloy crankset / 175mm / 34T
REAR GEAR
Shimano XT RD-M8100 SGS Shadow Plus / 12 Speed
SHIFTERS
Shimano Deore SL-M6100-IR / Rapidfire Plus I-spec EV clamp
E MOTOR
TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
E MOTOR BATTERY
TQ Internal 360Wh
E MOTOR CHARGER
TQ 100-240V-4A
E MOTOR DISPLAY
TQ HPR Bluetooth / ANT+ / Dedicated Smartphone app
FORK
FOX 36 Float Rhythm Air Grip 3 modes / 15x110mm QR axle / tapered steerer 44mm offset / Reb. Adj. / Lockout / 160mm travel
FRAME
Carbon HMF Integrated Suspension Technology Virtual 4 Link kinematic / Adjustable head angle Syncros Cable Integration System TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline Range Extender Ready
FRONT TRAVEL
Front: 160mm
REAR TRAVEL
Rear: 155mm
SHOCK
FOX NUDE 6T EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Low Speed Adj. / Custom large Air volume / Reb. Adj. Travel 155-100-Lockout / T185X55mm
APPROX. WEIGHT
19.5 (with tubes)
EXTRAS
Syncros Fork Fender
FRONT HUB
Formula CL-811 / 15x110mm
FRONT TYRE
Maxxis Dissector / 2.6" / 60TPI Foldable Tubeless Ready / EXO 3C maxx Terra
REAR HUB
Formula CL-148M / 12x148mm
REAR TYRE
Maxxis Dissector / 2.6" / 60TPI Foldable Tubeless Ready / EXO 3C maxx Terra
RIMS
Syncros X-30S / 32H / 30mm / Sleeve Joint Tubeless ready
SPOKES
Stainless Black 15G / 1.8mm
*Please note product specifications are subject to change.
