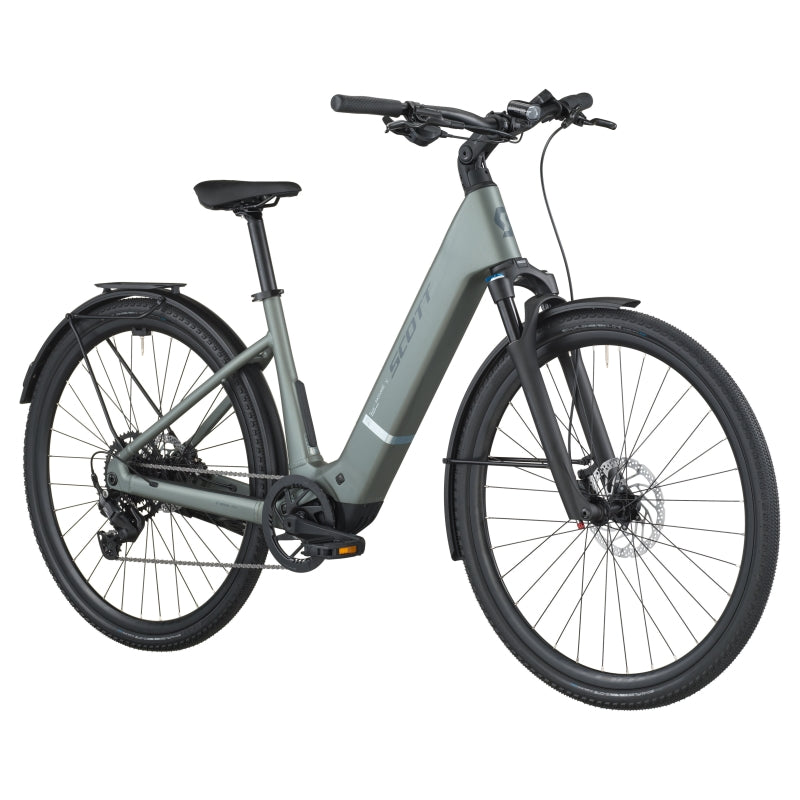

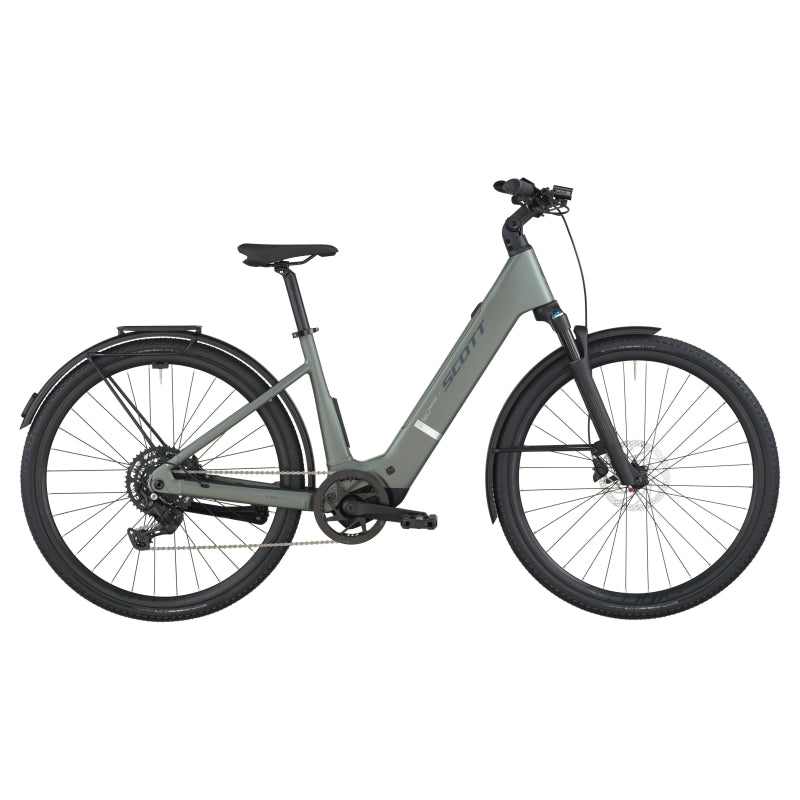

Scott Passage 20 Wave - Highland Green
- Passage eRIDE Alloy Frame
- Suntour 75mm Fork
- Shimano Cues 9 Speed Drivetrain
- Shimano Disc Brakes
You can now shop online and pick up your order from your local My Ride. When choosing your delivery method at check out simply select pickup in store.
Please note, only the person who placed the order can pick it up.
To collect your order, please bring:
• The order confirmation email
• Matching photo ID (driver’s license or passport)
• The credit card used to pay for the order
You will be notified when your order is ready to collect.
We are pleased to be able to offer delivery on orders containing apparel, helmets, shoes, part and accessories. We do not offer delivery orders containing bikes. Any order containing a Bike must be picked-up from your selected My Ride store.
At My Ride, we offer a flexible returns policy and are happy to accept items back for a refund or exchange if items purchased don’t fit or the items are damaged/faulty upon receipt.
- Goods cannot be returned or exchanged if the customer has simply changed their mind.
- Refunds and exchanges are permitted where the goods purchased do not perform as advertised.
- Refunds & Exchanges will only be offered on full priced items only .
- Unfortunately sale or discontinued items cannot be exchanged or refunded.
Click here to view the full My Ride returns policy.
All Warranty enquiries must be made directly to the My Ride Store associated with your purchase.
If you cannot locate the My Ride Store associated to your order, please call My Ride Customer Service Team on 1300 883 305 (9am-5pm weekdays) or on email help@myride.com.au
All product specifications subject to change without notice.
The center of it all is the lightweight yet strong Bosch SX motor unit and tidy 400Wh battery. On the ride, the combo provides effortless performance on the pedals, accelerating smoothly over hills, delivering confident torque from a stop, and supplying the range to power you to your destination on the other side of town.
Handling is also light and easy, feeling more like a traditional bike than cumbersome and sluggish compared to a heavier urban E-Bike. The motor unit is just 2kg, low in the frame, and compact enough to provide confidence when navigating and a more natural pedaling style thanks to its favorable Q-factor.
We equipped this Passage 20 with a 75mm suspension fork to soften rough pavement on your routes and 45mm tires to add stability and durability no matter what comes your way. Its 9-speed drivetrain gives you the gearing range to ride around town like a pro, and the rear rack sets you up to stow the day's essentials.
Key Features
- Passage eRIDE Alloy Frame
- Bosch SX, CT400 SmartSystem Engine System
- SR Suntour 75mm Fork
- Shimano Cues 9 Speed Drivetrain
- Shimano Disc Brakes
- Lezyne front light / Syncros integrated rear lights
- Racktime Micro rear rack, Snap it 2.0 compatible, 8Kg
Please note that bike specifications are subject to change without prior notice.
- APPROX. WEIGHT
- 22.2 kg
- BRAKES
- Shimano BR-MT200 Disc
- BRAKES ROTOR
- Front: SM-RT30 CL 180mm Rear: SM-RT30 CL 160mm
- CASSETTE
- Shimano LG300 11-46T
- CHAIN
- Shimano LG500
- CHAINGUIDE
- Syncros
- CHAINRING
- FSA 38T
- CRANKSET
- FSA CK-220 170mm
- DRIVE UNIT
- Bosch Performance Line SX (BDU314Y) EU: 25kmh
- E MOTOR BATTERY
- Compact Tube 400Wh
- E MOTOR CHARGER
- 2A Charger
- E MOTOR DISPLAY
- Bosch Purion 200
- EXTRAS
- Alumee alloy profile Fender Passage Kickstand
- FORK
- SR Suntour NRX32-E Air LO R Tapered 15x100 bolt Axle Remote Lock Out Steel Steerer 75mm Travel
- FRAME
- Alloy S-L=29" 6061 Alloy custom butted tubing Top extraction battery
- FRONT HUB
- Shimano HBTC50015B CL 15x100mm
- FRONT TYRE
- Schwalbe G-One Overland 365 Performance 700x45C
- HANDLEBAR
- Syncros Welded Alloy Combo 680mm Backsweep 9 Upsweep 8 70mm with front Light mount
- HEADSET
- Acros 1.5- 1.5 semi integ. OD 50/61mm ID 44/55mm
- LIGHTS
- Lezyne Fusion E550SM front light Rear Supernova TL3Z
- PEDALS
- Marwi SP-827
- RACK
- Racktime Micro Rack SnapIt 2.0 8KG
- REAR DERAILLEUR
- Shimano CUES RDU4000GS 9 Speed
- REAR HUB
- Shimano FHTC500HMB CL 12x142mm
- REAR TYRE
- Schwalbe G-One Overland 365 Performance 700x45C
- RIMS
- Syncros X15 Disc
- SADDLE
- Syncros Capilano
- SEATPOST
- Syncros M3.0 31.6
- SHIFTERS
- Shimano CUES SLU4009RC 9 Speed
- SPOKES
- Black Spokes
- NOTE
- Specifications subject to change
- PART NUMBER
- 425618
