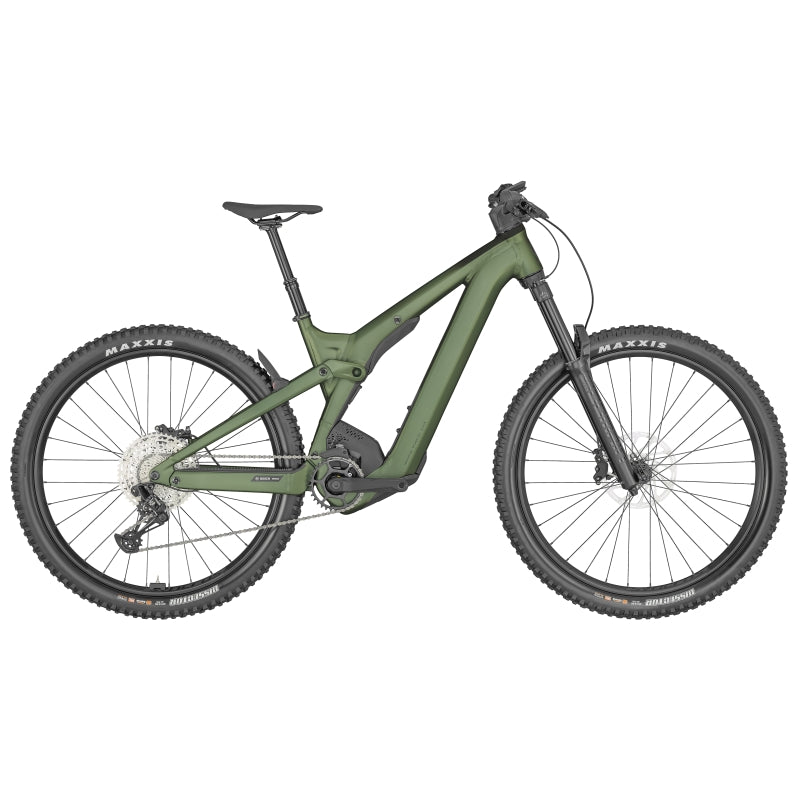

Scott Patron Eride 930
Find your local store to view product availability
Details
Specs
Product Code: 290556
The Patron eRIDE 930 was designed as a system optimized for all day trail riding. Supreme integration and meticulously selected geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE - boss the trails.
KEY FEATURES
- Patron eRIDE Alloy Frame
- RockShox Domain 160mm Fork
- X-Fusion Nude eRIDE, 160mm, TwinLoc
- Sram NX 12 Speed
- Bosch CX, 625Wh PowerTube / SmartSystem
- Sram DB8 4 pistons Disc Brakes
- Syncros Dropper Post
GRIPS
Syncros Endurance lock-on grips
HANDLEBAR
Syncros Hixon 2.0 / Alloy 6061D.B. 12mm rise / 9 deg / 780mm
HEADSET
Acros / 1.8" ZS66 OD74 / integr. Cable
REMOTE SYSTEM
SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 modes
SADDLE
Syncros Tofino 2.5 Regular
SEATPOST
Syncros Duncan Dropper Post 2.5 31.6mm / S size 125mm / M size 150mm / L size 170mm / XL size 200mm
STEM
Syncros AM2.0 / 6061 Alloy 31.8mm / 4 deg / 1 1/8"
BRAKES
SRAM DB8 4 Piston Disc
BRAKES ROTOR
Centerline CL Rotors 200mm F&R
CASSETTE
SRAM PG1210 / 11-50 T
CHAIN
SRAM SX Eagle
CHAINRING
SRAM Eagle 34T DM / Steel
CRANKSET
FSA CK-745 165mm / 34T
REAR DERAILLEUR
SRAM NX Eagle / 12 Speed
SHIFTERS
SRAM SX Eagle Single Click
DISPLAY
Bosch LED Remote
DRIVE UNIT
Bosch Performance CX
E MOTOR BATTERY
PowerTube 625Wh
E MOTOR CHARGER
4A Charger
LIGHTS
Syncros integrated rear fender light Front Light Cable pre-installed
FORK
RockShox Domain Air 15x110mm QR axle / 1.8" Tapered Steerer Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike
FRAME
Alloy Frame & Link Virtual 4 link kinematic VLK 29x2.6 / Boost 148x12mm UDH 160mm travel / Bosch Gen4 / Integr. removable Battery 1.8" Headtube, Central Kickstand Mount Integr. Cable
FRAME MATERIAL
Alloy
FRONT TRAVEL
160mm
REAR TRAVEL
160mm
SHOCK
X-Fusion NUDE eRIDE Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Reb. Adj. Travel 160-115-Lockout / 205x60mm
APPROX. WEIGHT
26.1kg (with tubes)
FRONT HUB
Formula CL-811 / 15x110mm
FRONT TYRE
Maxxis Dissector 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
REAR HUB
Formula ECT-1481 / Boost 148x12mm
REAR TYRE
Maxxis Dissector 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
RIMS
Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready
SPOKES
Stainless Black
*Please note product specifications are subject to change.
