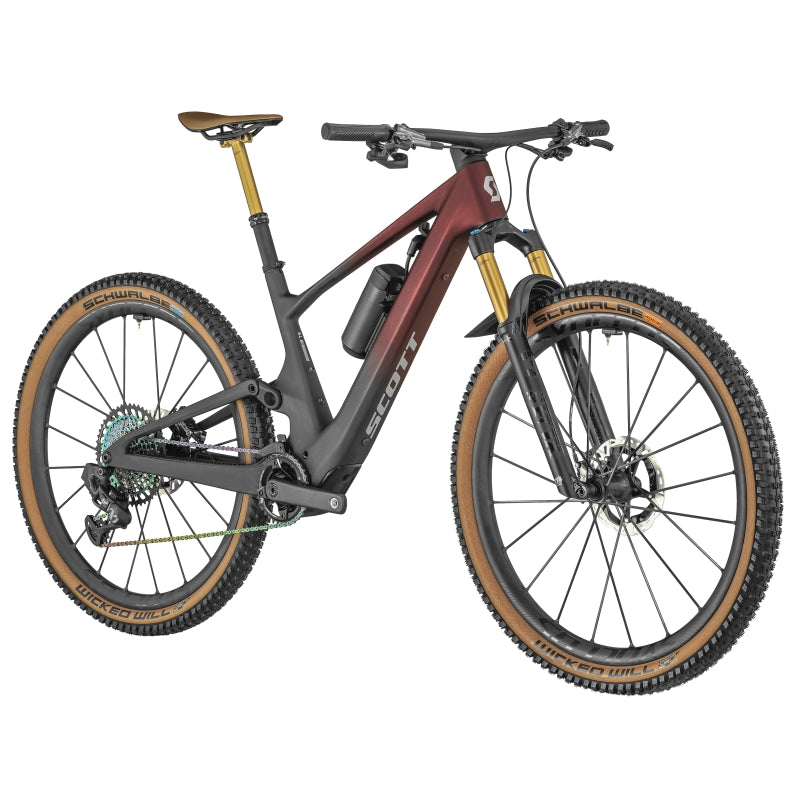

The All-New Scott Lumen - LIGHT UP YOUR RIDE
The Scott Lumen is a game-changing e-mtb weighing just 15.5kg. Yup, you read that right. the Scott Lumen takes the world's fastest xc/trail frame platform and adds completely silent and powerful electric assistance all while maintaining scott's legendary lightweight dna.
The ride feel is like a regular bike: no need to think about a longer braking distance, pedal drag or weight, as it's even possible to ride the bike with the assistance switched off. This is an e-bike for a mountain biker, with all the benefits of a regular bike, now with added assistance to get you up those hills faster to enjoy riding further and for even longer.
Compact Powerful Assistance
From the beginning, the objective was to create the lightest possible E-Bike and, after much investigation, it was clear that the TQ HPR50 was the ultimate solution for the SCOTT eRIDE R&D Team to achieve their goals.
TQ is a German company founded in 1994 who specialize in electric components across a range of industries including aerospace, medical and infrastructure. With the HPR50, they simply rewrote the rules, delivering
an unprecedented weight/power ratio of 1.8 kg for 50Nm.
With a diameter of 8 cm, TQ has innovated by using a harmonic gear system. This allows for a reduction of size, while also increasing the accuracy of the system. This results in a lighter bike, better integration, while reducing backlash for a more natural pedalling sensation. This technology also allows for the reduction in system noise for a truly natural experience.
After all, you are in the outdoors to, well, enjoy the outdoors.
A key aspect of the lightweight drive system is that it has allowed Scott to reach a complete bike weight of 15.5kg on the top spec model. This has an effect on power to weight for the Lumen, when compared to the traditional E-Bike which has a higher torque motor and bigger battery.
On all but the steepest climbs, the Lumen can actually be faster. On the descents, it gives you the feeling of a regular bike.
The system can be controlled via a minimalistic handlebar remote paired to the integrated top tube display. The modes are easy to switch through, and, thanks to the ergonomic placement on the handlebar, can be easily controlled whilst riding, as well as when using Walk Mode.
The TQ app offers real benefit and is easy to use. It's easy to connect, customize and control your TQ-powered e-bike with the TQ E-Bike app. The bike comes with a suggested SCOTT motor tune, with the app you can tune your drive unit to either save battery life or maximise the power output. You can alter the pedal response either for a faster motor uptake responseor to slow it down for a more natural feeling.
Lastly you can customize the display, altering the order and number of screens available, turn on and off control sounds etc. No buzz, no additional noise - simple essential information for when you and your E-Bike are on the go so you can ride more and enjoy the moment.
To maintain a clean cockpit, the TQ system puts the focus on a minimalistic display located in the top tube paired to a discrete shifter on the handlebar. At a glance, the LED display provides all the essential info, such as the battery level %, remaining KM range and even Watts, thanks to an integrated power meter. Want more? Link up your phone and dive deep using the TQ E-Bike app, available through the Apple App or Google Play Store. With an automatic Bluetooth connection, you can track your ride and customize your modes. Want to use it with a bike computer? That's no problem too. Utilizing the built in ANT+, the system easily connects with a bike computer such as a Garmin, Hammerhead or Wahoo unit.
Syncros Fraser iC SL DC Carbon, 0 deg rise / back sweep 8deg / mini Rise / 760mm, Syncros Performance XC lock-on grips
Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6 deg head angle adjustment, ZS56/28.6 - ZS56/40 MTB
SCOTT TwinLoc 2 Technology, Suspension & Dropper Remote, 3 Suspension modes
Syncros Tofino Regular 1.0, Carbon rails
FOX Transfer Factory Dropper Post Kashima, 31.6mm / S size 125mm / M size 140mm, L ize 150mm / XL size 175mm
Syncros Fraser iC SL DC Carbon, 0 deg rise / back sweep 8 deg / mini Rise / 760mm, Syncros Performance XC lock-on grips
Shimano XTR M9120 4 Piston Disc, Front; RT-MT900 CL 180mm / Rear; RT-EM910 CL 180mm
SRAM XX1 XG1299 / 10-52 T
SRAM CN XX1 Eagle
FSA Carbon crankset / 175mm / 34T / e*thirteen / e*spec Slider
SRAM XX1 Eagle AXS 12 Speed, Wireless Electronic Shift System
SRAM Eagle AXS Rocker Controller
TQ, 360WH, 2.5 hour charge time 0-100%
TQ, Bluetooth & ANT +
TQ HPR50, 50NM, 300W, 1.85KG
TQ, 160WH Supplied with bike, 950G
FOX 34 Float Factory Air / Kashima FIT4, 3-Modes with low Speed adj. / Kabolt 15x110mm axle / 44mm offset, Tapered steerer / Lockout / Reb. Adj., 130mm travel
Lumen eRIDE Carbon HMX, Integrated Suspension Technology, Flex Pivot / Adjustable head angle, Syncros Cable Integration System, TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
FOX NUDE 5T Factory EVOL Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, Custom large Air volume / DPS / Kashima / Reb. Adj., Travel 130-90-Lockout / T165X45mm
Syncros Eco Sealant, Transport Axle
SRAM AXS Powerpack, Syncros Fork Fender, TQ 100-240V-4A
Schwalbe Wicked Will 29x2.4 EVO, Super Race / TLE / 67EPI / Addix Speed Soft
Schwalbe Wicked Will 29x2.4 EVO, Super Race / TLE / 67EPI / Addix Speed Grip
Syncros Silverton SL2-30 CL full Carbon, F: 15x110mm, R: 12x148mm / 30mm Tubeless ready rim, DT Swiss 240 Ratchet EXP 36 / XD Driver, SRAM TyreWiz / Syncros SL Axle w/Removable Lever, with 6mm Allen, T30 and T25 Tools
*Please note product specifications are subject to change.
