Product Code: 287864

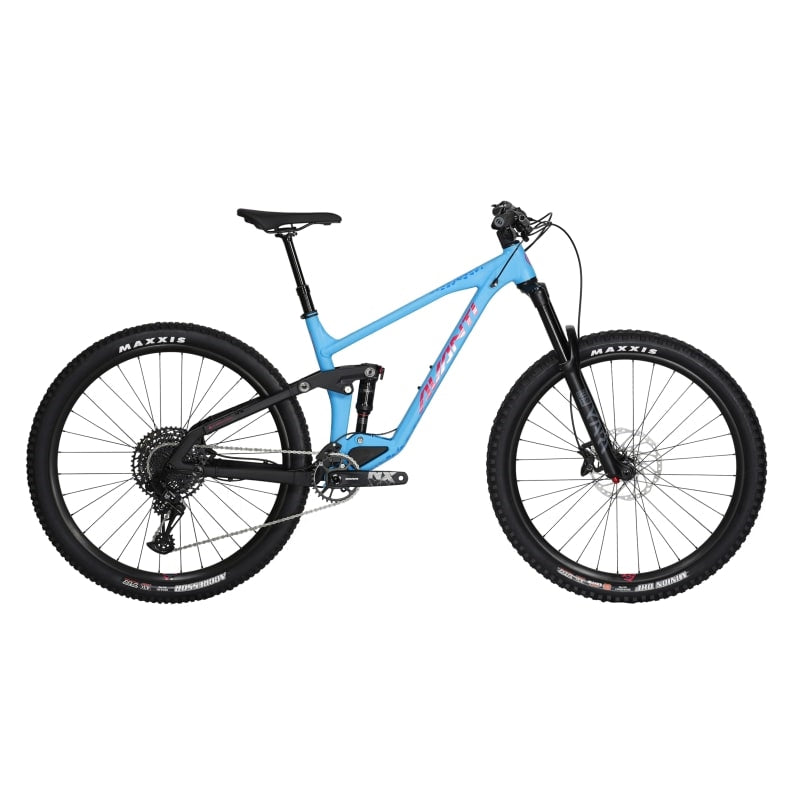

The Hammer LT range of 160/145mm trail bikes, are engineered in Germany to be light, but tough enough to handle steeper and more aggressive terrain than our Hammer S line. Small frame size bikes features 27.5 wheels for lower standover and all bikes in the range feature Rockshox front and rear suspension, long-travel Syncros dropper posts, Shimano hydro brakes and SRAM's excellent Eagle 12 speed drive trains. Added to that, LT's feature our 'Stashbox' in the frame which is fully equipped with all the quality Syncros mini tools you need out on the trail.
Take a look at our full range of mountain bikes here at My Ride.
AT A GLANCE
FRAME
- Alloy Ultralight, 145mm travel, tapered headtube, stash box with tools
COMPONENTS
- 12sp SRAM NX Eagle, Shimano 4 piston brakes
SUSPENSION
- Fr: Rockshox Yari RC Air 160mm, Rr:Rockshox Delux Select+ Debon Air
WHEELS
- Alex EXR30 rims with Alloy thru axle hubs
WHAT'S NEW
- Rockshox Yari RC fork
- Shimano MT520 hydraulic brakes
- Long travel dropper post
KEY FEATURES
- German-engineered tough alloy 145mm travel frame with 'Stash Box' fully equipped with Syncros trail tools
- Tough Rockshox air sprung suspension front and rear with plush Debon Air damping
- SRAM NX Eagle 12 speed components for bullet proof shifting
- Shimano M520/501 hydraulic 4 piston brakes
- Full Syncros cockpit with internally routed dropper post
Syncros Pro Lock-on
Syncros Hixon 2.0 31.8mm with 12mm rise 9 deg sweep
Integrated Threadless 1 1/8th - 1.5inch (with extra lower geometry adjust cup for 27.5+ )
Syncros ER2.5
Syncros Duncan Dropper 31.6mm with internal cable routing
Syncros FL 20 31.8 6 deg rise
SRAM DUB Pressfit
Shimano MT501hydraulic
Shimano MT520 hydraulic 203 front/180mm rear rotors
SRAM PG-1210 Cassette 11-50T 12 speed
SRAM NX Eagle
SRAM NX Eagle DUB 32T
SRAM NX Eagle
SRAM NX Eagle 12 speed
Rockshox Yari RC Air 160mm air spring 1.5inch taper rebound adjust lock-out Boost 110 15mm axle - S=27.5 M/L/XL=29er
AL-6061 Ultralight Butted tubing 145mm travel cartridge bearing pivots 1.5inch tapered headtube PF92 BB 12 x 148m stash box with tools
Rockshox Delux Select + Debon Air rebound adjust
Stash Box in frame is fully equipped with Syncros trail tools MINI chain guide
Alloy 148x12mm 32H
Alloy 110x15mm 32H
Alex EXR 30 Double-wall Alloy with eyelet 32H Tubeless Ready
Stainless steel
Fr: Maxxis Minion DHF 3CMaxxTerra/EXO 2.5inch; Rr Maxxis Aggressor 3CMaxxTerra/EXO 2.3inch (2.5inch on S size). Foldable Tubeless Ready
29
*Please note product specifications are subject to change.
